Bayraktar TB3

Unmanned Combat Aerial Vehicle

An indigenous armed unmanned aerial system capable of autonomously taking off and landing on aircraft carriers with short runways.

Foldable Wings

Folded on deck,14 meters wingspan.

The outer wings unfold before take off and fold again after landing.

Take off and landing fromshort-runway aircraft carriers.

Designed for naval operations.

Payload - ISR

Reconnaissance, surveillanceand intelligence.

ELINT, simultaneous EO/IR/LD and surveillance radar.

Payload - Weapons

Smart munitionsmounted under its wings.

  • 01Laser Guided Munitions
  • 02INS/GPS Guided Munitions
  • 03IR Guided Munitions
  • 04Mini Cruise Missiles

LOS & BLOS

Line of Sight andBeyond Line of Sight.

Remote operation over vast distances, for both close-range and long-range missions.

Basic Flight Performance

24+ Hours
Endurance
1600 Kilograms
Maximum Take Off Weight
280 Kilograms
Payload Capacity

Fully autonomoustake off and landing.

Take off, landing, cruise and taxi are autonomous.

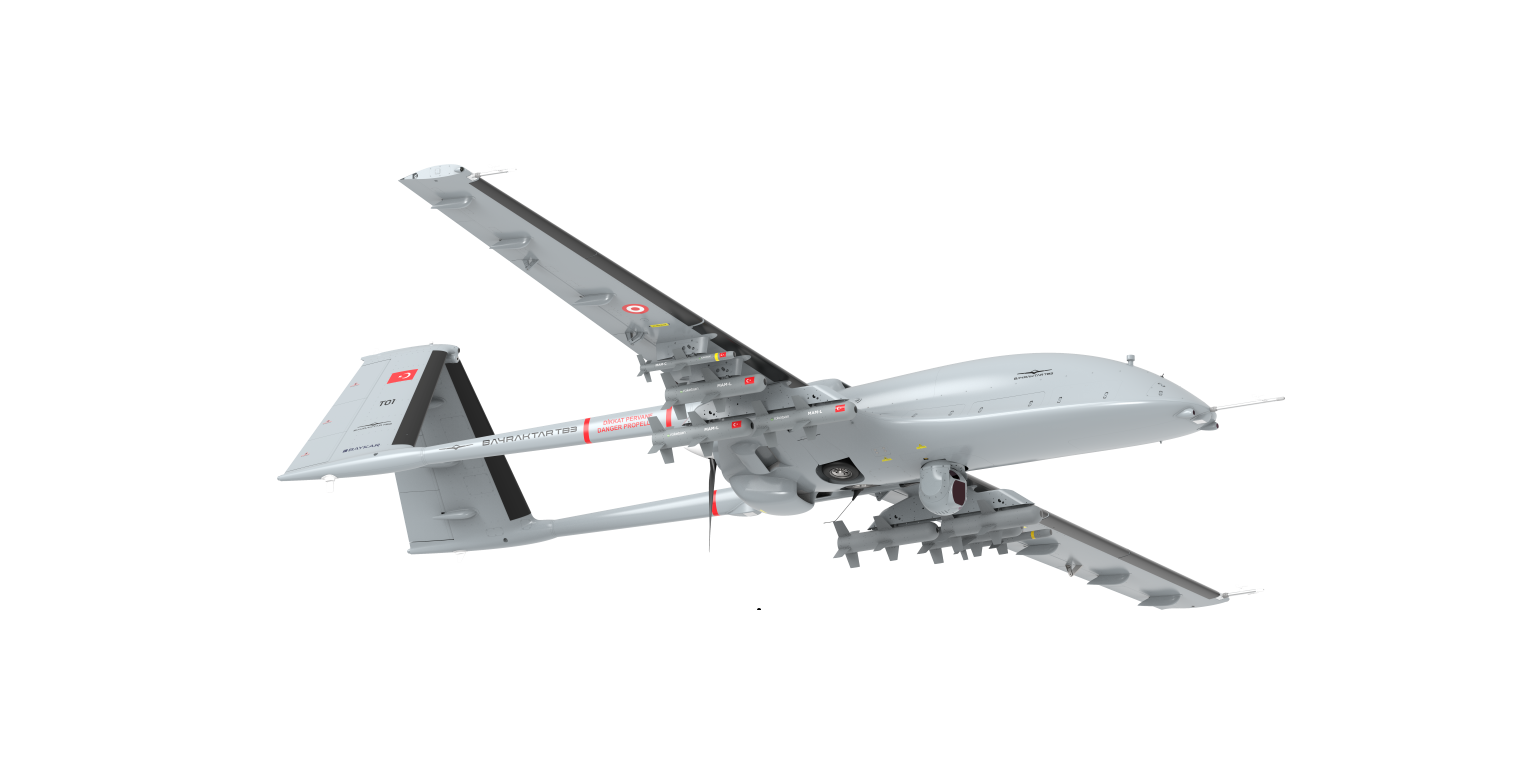

Bayraktar TB3

Unmanned Combat Aerial Vehicle

Bayraktar TB3

GeneralInformation

The Bayraktar TB3 UCAV is an indigenous armed unmanned aerial system currently under development by Baykar, capable of autonomously taking off and landing on aircraft carriers with short runways. In addition to its reconnaissance, surveillance, and intelligence missions, the Bayraktar TB3 is equipped to carry out strike missions using smart munitions mounted under its wings.

The system supports remote operation over vast distances, thanks to its Line of Sight (LOS) and Beyond Line of Sight (BLOS) communication capabilities, making it highly versatile for both close-range and long-range missions.

Basic flight performance criteria

8.35 Meter
Length
14 Meters
Wingspan
1600 Kilograms
Maximum Take Off Weight
280 Kilograms
Payload Capacity
24+ Hours
Endurance

Advanced Features

  1. 01Take Off and Landing Capability from Short-Runway Aircraft Carriers
  2. 02Fully Autonomous Take Off and Landing
  3. 03LOS and BLOS

TechnicalSpecifications

Service Ceiling
25.000 feet
Communication
LOS & BLOS
Operational Altitude
20.000 feet
Endurance
24+ hours
Power Plant
170 hp Turbodiesel Engine
Take Off/Landing/Cruise/Taxi
Autonomous
Cruise - Max. Speed
110-130 KTAS
MTOW
1600 kg*
Payload Capacity
280 kg
Versions
Land and Marine
Payload - Weapons
Laser Guided Munitions, INS/GPS Guided Munitions, IR Guided Munitions, Mini Cruise Missiles
Payload - ISR
ELINT, Simultaneous EO/IR/LD, Surveillance Radar
Length
8.35 m
Height
2.6 m
Wingspan
14 m

*MTOW may vary on Naval Version
